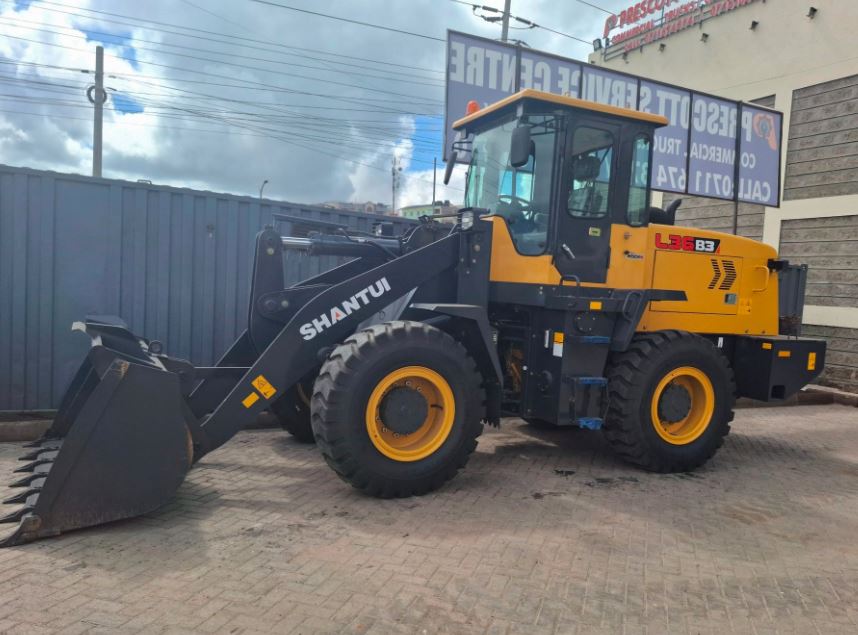

The Shantui L36-B3 is a medium-sized wheel loader designed for loading soil, ballast, sand, gravel and other construction materials. Its combination of a 1.7-cubic-metre bucket, articulated steering and 125hp Weichai diesel engine makes it suitable for contractors, quarries, concrete yards, farms and county road projects.



Need a Shantui wheel loader in Kenya?
 Request current sale or hire quotations through James Nginya 0717133839

According to the attached manufacturer specifications, the loader has an operating weight of approximately 10,500kg and a full-turn tipping load of 6,000kg. Buyers searching for a machine between smaller compact loaders and heavy five-ton loaders may find the L36-B3 a practical middle option.
Need The Shantui Wheel Loader PDF?
Click Here To Request whether Printed or Soft Copy.

The engine is a six-cylinder, turbocharged 6.75-litre unit producing maximum torque of 540Nm. Its power-shift transmission reduces the effort required when changing direction repeatedly during loading operations.

Shantui L36-B3 Specifications

Specification Shantui L36-B3
Engine Weichai WP6G125E201
Rated power 92kW/125hp at 2,000rpm
Operating weight 10,500kg
Bucket capacity 1.7m³
Full-turn tipping load 6,000kg
Bucket breakout force 105kN
Maximum dump clearance 3,057mm
Maximum forward speed 37km/h
Maximum reverse speed 28km/h
Transmission Countershaft power shift
Forward/reverse gears 4 forward, 2 reverse
Tyre size 17.5-25 L3
Fuel-tank capacity 150 litres

Shantui L36-B3 Price in Kenya

The Shantui L36-B3 wheel loader price in Kenya is KSh 6.35 million, inclusive of VAT. However, delivery is charged separately and will depend on the buyer’s location and transportation requirements.

The price covers the machine, but buyers should request a formal quotation confirming the warranty, commissioning, operator training and after-sales support provided. Before payment, verify the wheel loader’s condition, year of manufacture, serial number and availability of genuine Shantui spare parts.






Need a Shantui wheel loader in Kenya?
 Request current sale or hire quotations through James Nginya 0717133839

Performance and Applications

The L36-B3’s 1.7m³ bucket can handle general construction materials, although the actual payload depends on material density. Wet soil, rock and aggregates are considerably heavier than dry agricultural material, so operators should avoid assuming that every full bucket carries the same weight.

Its 3,057mm maximum dump clearance can support loading into many common trucks and hoppers. The articulated chassis, 36-degree steering angle and 5,325mm outside-tyre turning radius help the loader manoeuvre inside yards and active construction sites.

Typical applications include:

  • Loading sand, ballast and gravel
  • Clearing and levelling construction sites
  • Feeding concrete batching plants
  • Quarry and crusher-yard operations
  • Handling manure, silage and farm materials
  • Road construction and maintenance
