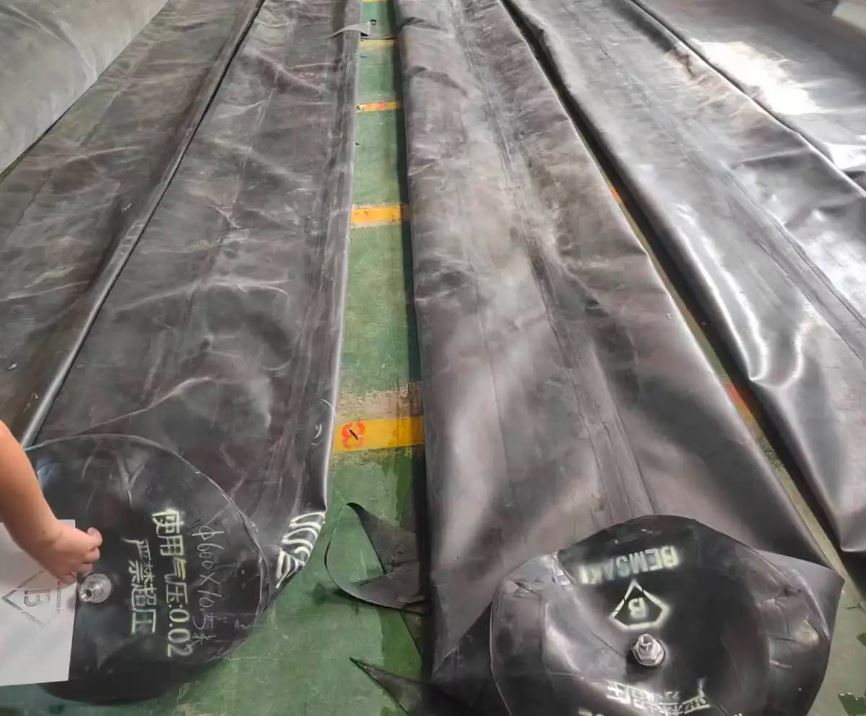

Image of an Inflatable Culvert Balloons by bemsaki enterprise
Inflatable rubber culvert balloons are essential tools used by civil engineers and contractors during culvert construction and drainage projects. These durable rubber balloons are inserted into culvert molds and inflated to create a hollow structure while concrete is poured around them. Once the concrete sets, the balloon is deflated and removed, leaving behind a perfectly shaped culvert pipe.
Across Kenya, contractors building access roads, farm roads, and highway drainage systems increasingly rely on inflatable culvert balloons because they simplify culvert forming and significantly reduce construction time. Instead of using complex wooden molds or metal formwork, contractors can inflate the balloon to the required diameter and achieve a smooth internal culvert surface.
How Inflatable Culvert Balloons Work

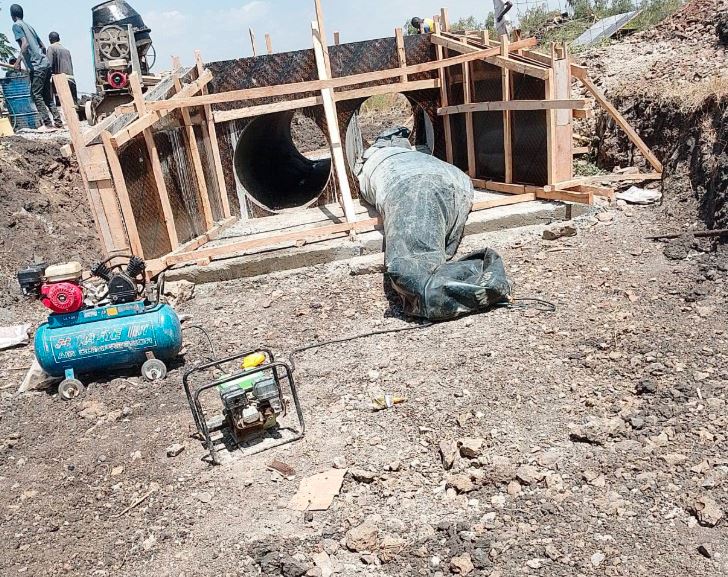

Image of a 1200mm installation Inflatable Culvert Balloons by bemsaki enterprise
Inflatable culvert balloons are made from high-strength vulcanized rubber designed to withstand pressure during concrete casting. The balloon is placed inside the culvert formwork before concrete is poured. Once positioned, it is inflated using an air pump to reach the required diameter.
As the concrete cures around the balloon, it forms the outer structure of the culvert. After curing, the balloon is deflated and carefully removed so it can be reused on another construction site.
This process ensures a uniform culvert shape, smooth interior walls, and faster installation compared to traditional culvert forming techniques.
Available Sizes for Culvert Balloons
Culvert balloons are manufactured in different diameters and lengths to suit various pipe and drainage projects.
| Culvert Diameter | Balloon Length | Typical Use |
| 300 mm | 600 mm | Small drainage pipes |
| 600 mm | 850 mm | Access road culverts |
| 900 mm | 1250 mm | Highway culverts |
| 1200 mm | 1600 mm | Large drainage systems |
| 1500 mm+ | 2000 mm+ | Bridge and major infrastructure projects |
Common Applications of Culvert Balloons
Inflatable culvert balloons are widely used in civil engineering and drainage projects, including:
-
Access road culverts
-
Farm road drainage pipes
-
Highway drainage construction
-
Bridge culverts
-
Stormwater drainage systems
-
Cross-drainage structures
Because they are lightweight and portable, contractors can easily move them between multiple construction sites.
Planning a culvert installation or drainage project? Monolith Africa helps contractors locate inflatable culvert balloons and other drainage construction equipment.
Hire Here >>>
Advantages of Inflatable Culvert Balloons
Contractors prefer inflatable culvert balloons for several reasons:
Faster construction – reduces time spent building formwork
Reusable material – strong vulcanized rubber allows multiple uses
Smooth culvert finish – improves water flow efficiency
Easy transportation – lightweight compared to steel molds
Lower labour costs – quick installation and removal
These advantages make them a cost-effective solution for culvert construction across infrastructure projects.
